10KVA System For Powering A Printing Press
Portfolio Item 10KVA System For Powering A Printing Press
March 29, 2024 Solar Installations System 2 2

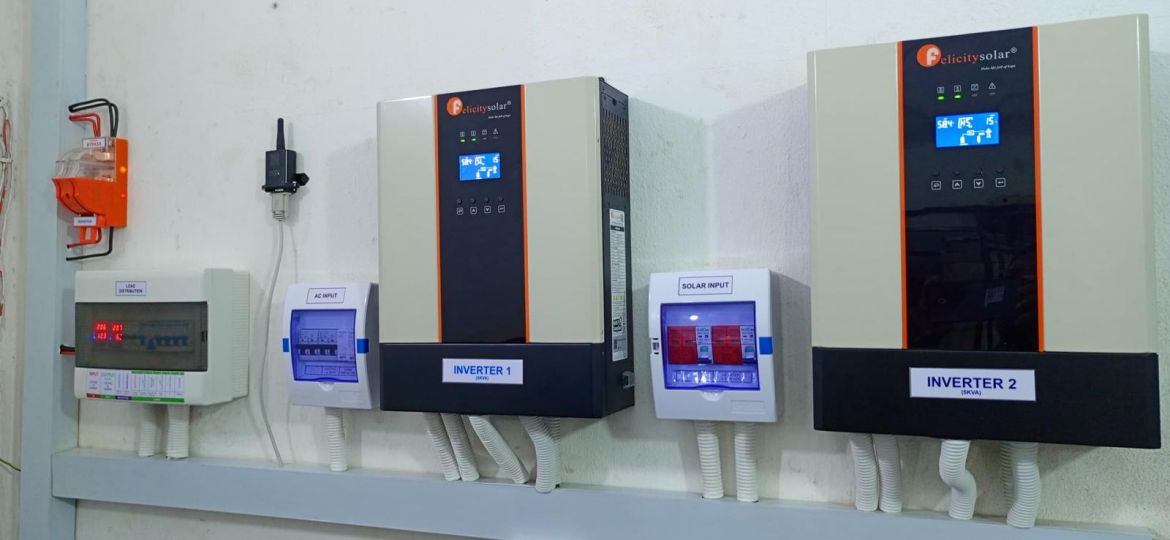

Full system Full system

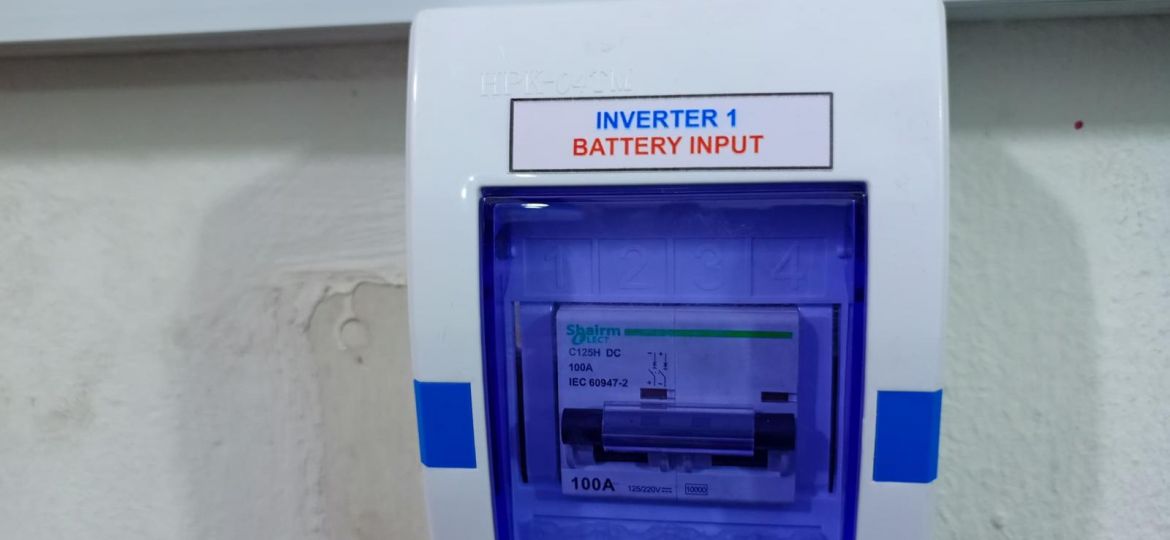

WhatsApp Image 2024-03-28 at 4.04.04 AM Safety Cutoff Switch for Battery

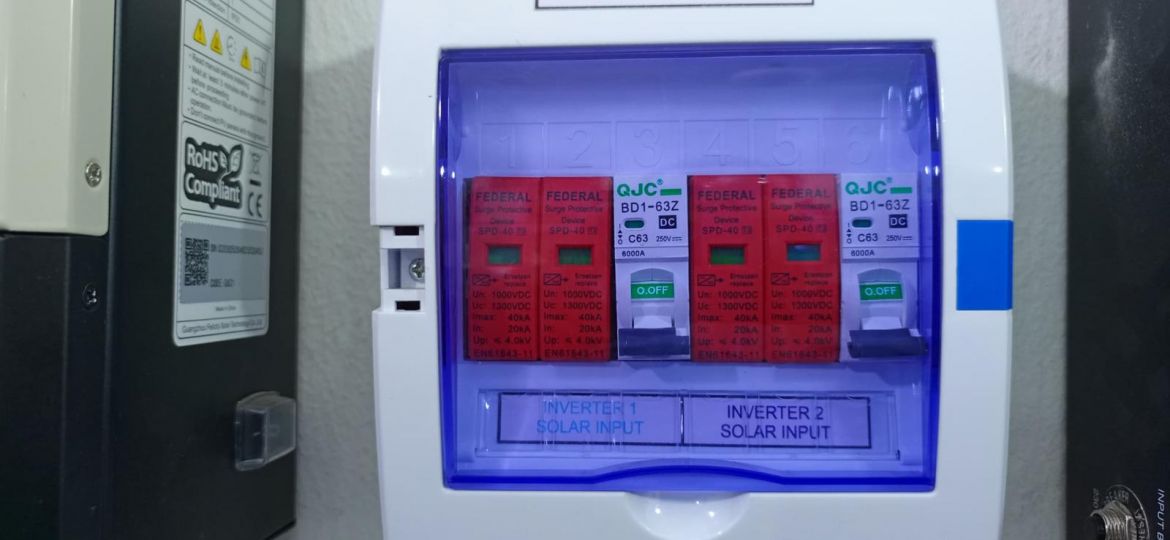

Safety switch for the solar power into the system Safety Switch for the Solar Power into the System

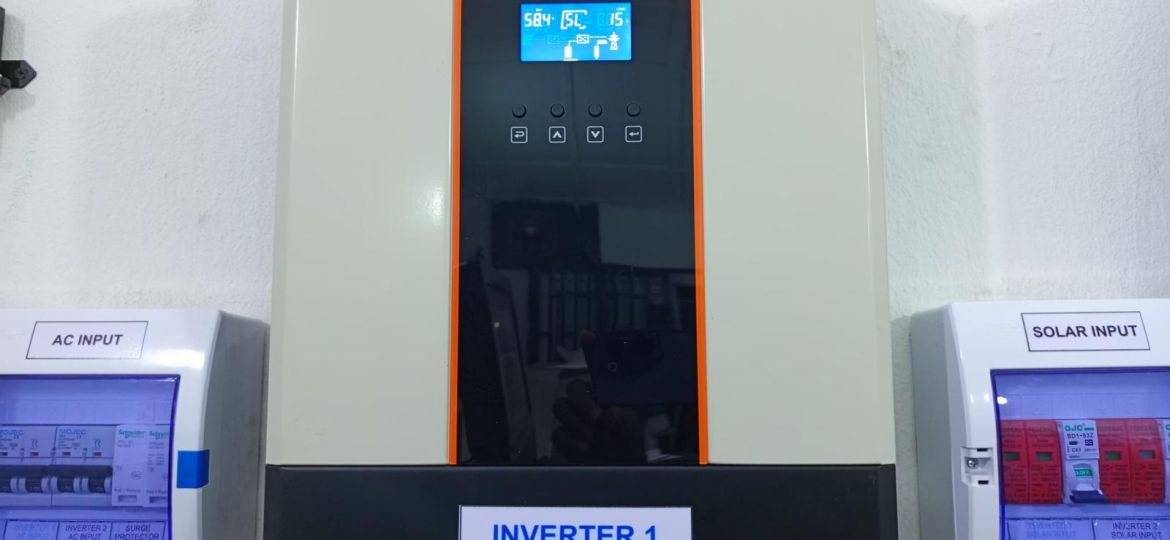

WhatsApp Image 2024-03-28 at 4.04.04 AM (3) 10KW output from two 5KW inverters running in parallel

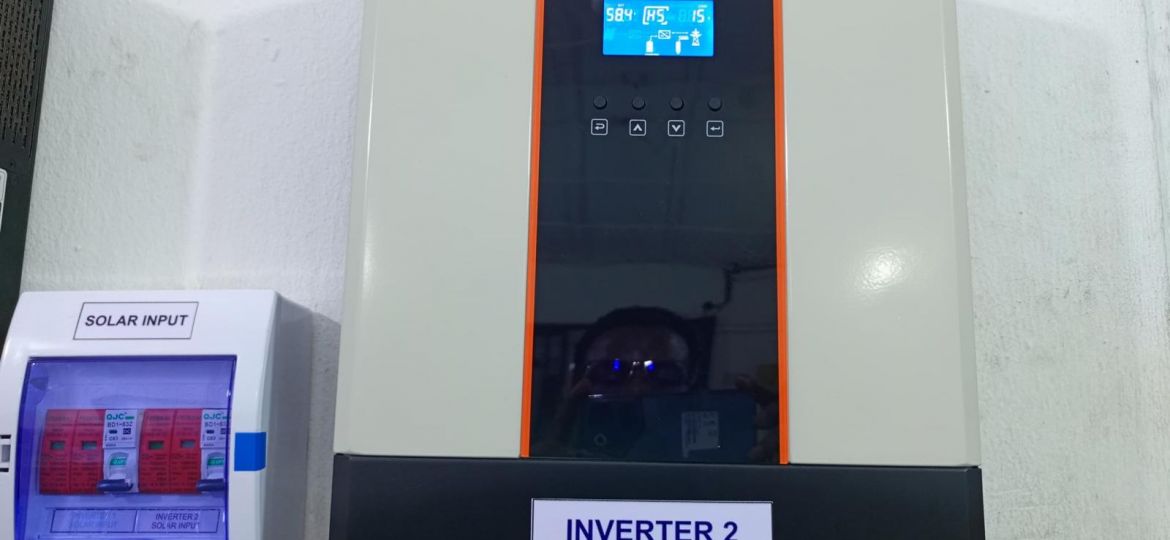

WhatsApp Image 2024-03-28 at 4.04.04 AM (2) Second Inverter unit

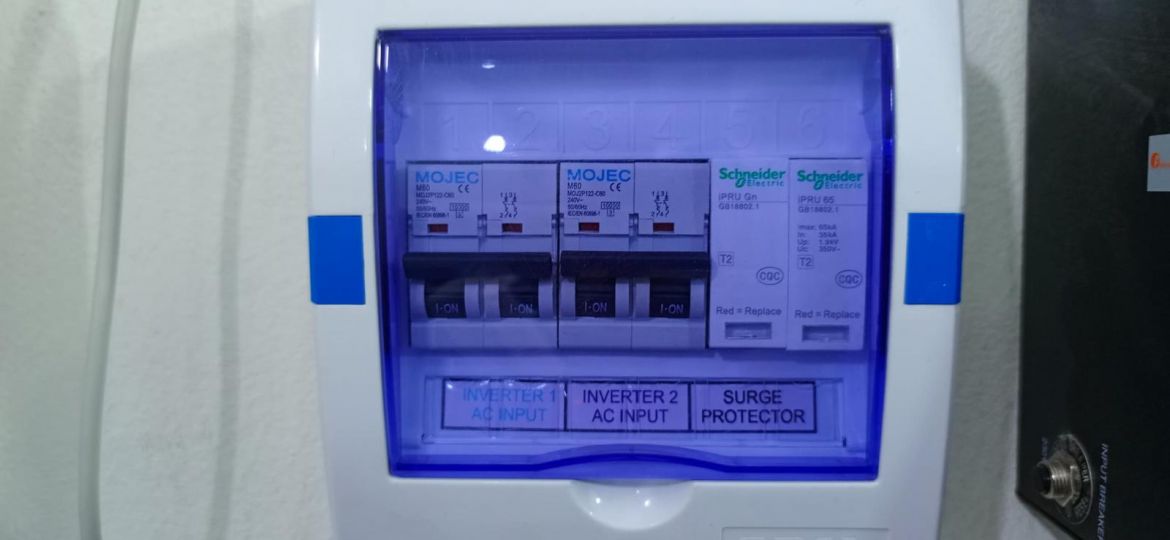

WhatsApp Image 2024-03-28 at 4.04.04 AM (4) Grid/Generator Power input The system can also charge the batteries from the grid or generator on cloudy days when solar is not sufficient.

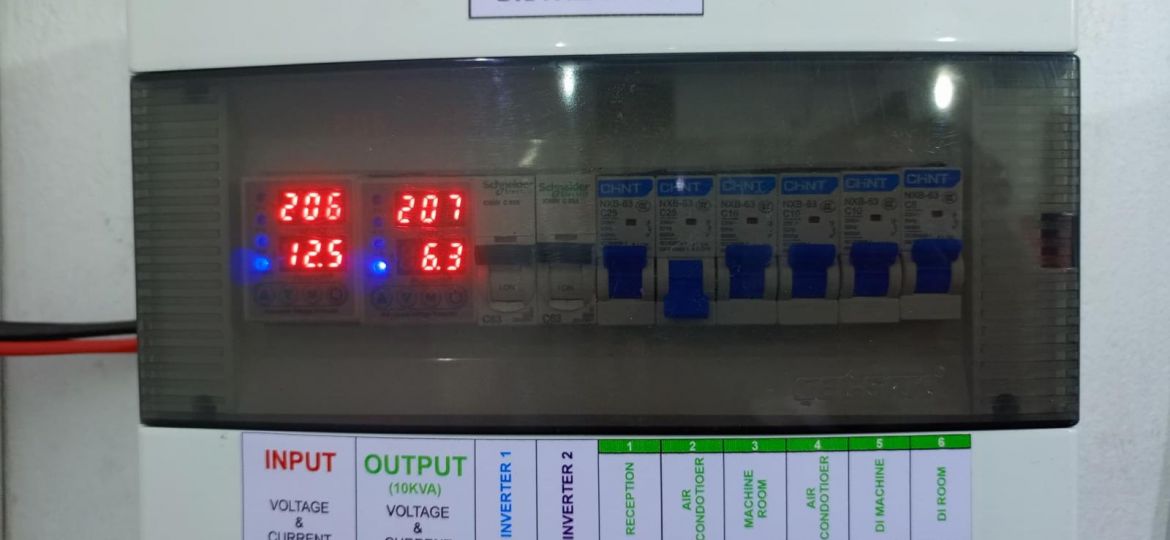

WhatsApp Image 2024-03-28 at 4.04.04 AM (5) Power Distribution Fine power distribution to the loads for easy understanding during any troubleshooting or electric overload shutoff

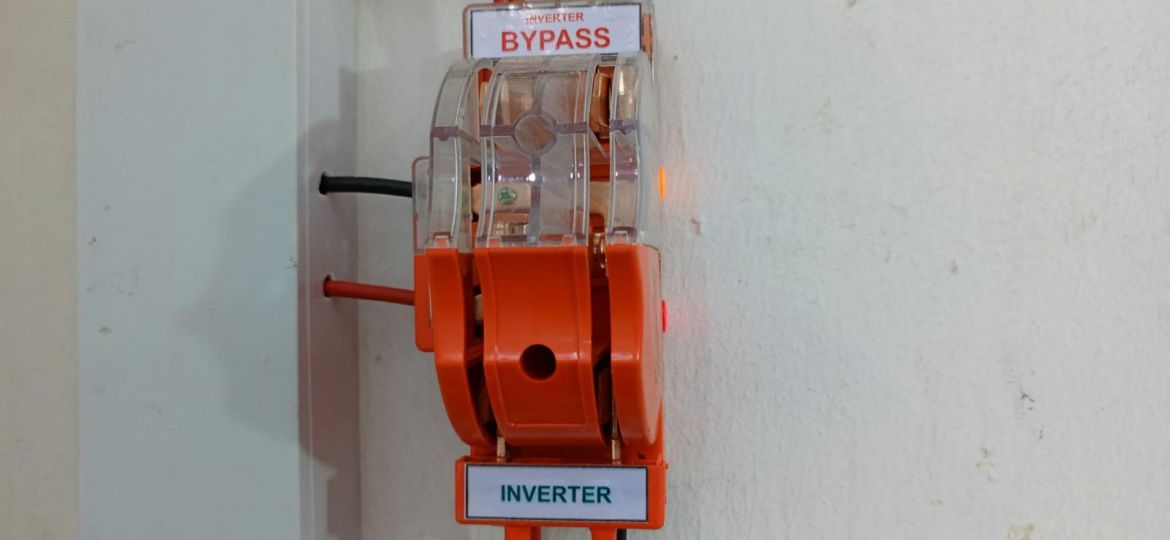

WhatsApp Image 2024-03-28 at 4.04.04 AM (6) Knife Switch Changeover Hardly used service bypass switch in case the inverter needs to be upgraded or serviced - Rarely happens but we design for all cases.
10KVA System For Powering A Printing Press

Capacity: 10KVA

Panel Mount: Roof

Solar Production: 10KW

Battery Type: Smart Lithium (LiFePO4)

Energy Storage: 20KWH

Capacity
10KVA
Storage
20KWH
Panel Mount
Roof
Solar Power
10KVA
